Custom ETOPs Charts

Create custom ETOPS charts automatically with skybook crew briefings.

Generate fully compliant, detailed ETOPS charts automatically with skybook briefing packs that can be taken in PDF format, through the skybook EFB application or as part of an ARINC633 EFF package on a third party EFB platform.

Create custom ETOPS charts automatically with skybook crew briefings.

Automated ETOPs Charts

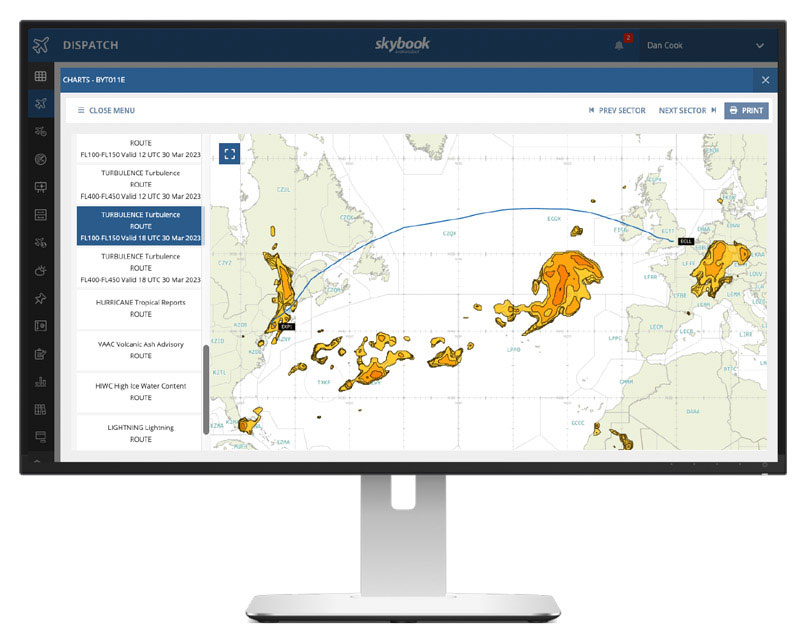

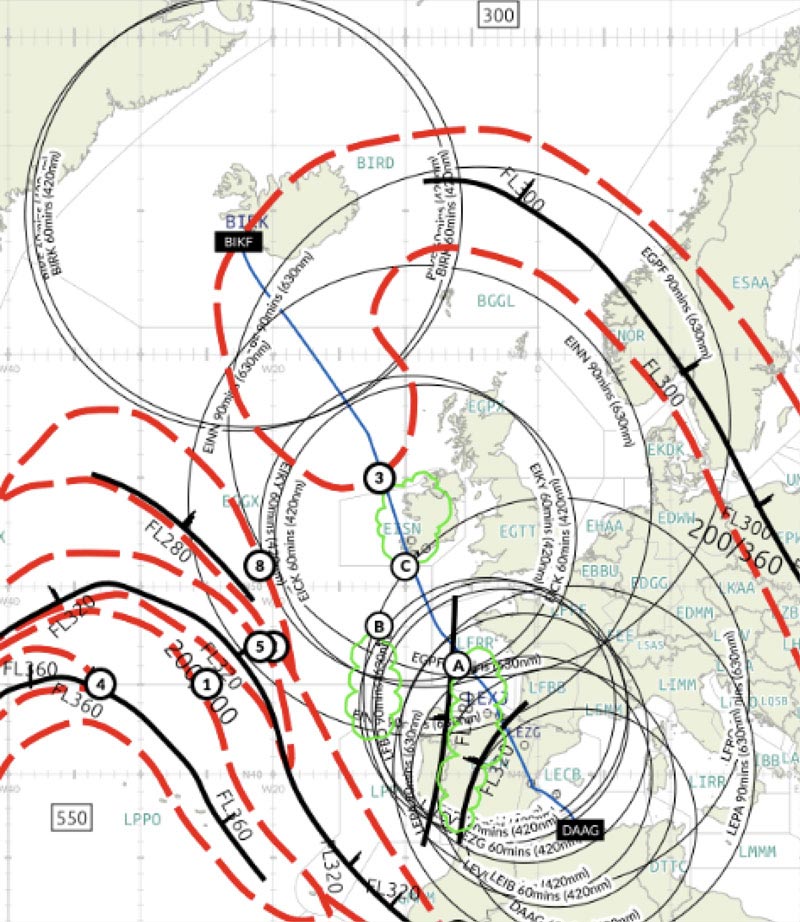

Improve efficiency and reduce workloads by automating the creation of ETOPS charts across all applicable flights depicting key data such as range rings, alternates and equal time points with additional overlays also containing clear air turbulence, snow line and tracks.

Our expertise in creating fully integrated solutions means no matter what flight planning system you are currently using, we can integrate our ETOPS software to create your charts allowing you to benefit from a fully automated process.

Once integrated skybook ingests the flight plans and extracts the relevant information in order to automatically generate all required ETOPS charts as part of the full crew briefing package.

This includes all routing information, ETOPS Alternates (ERAs), Equal Time Points (ETPs) and ETOPS Rule Time.

Our intelligent route plot chart software uses all of this information to automatically generate route plots, removing the need to manually complete the process and in turn, greatly reducing the chance of errors by totally removing the need for manual chart plotting.

In addition to the basic requirements our solution comes with the ability to add custom elements such as:

  • No-fly-zone areas
  • Data-entry boxes
  • Exit routes
  • Grey-overlay for areas outside of the theater of interest
  • Additional range rings around point of interest
  • Company filtered airfields
Improve efficiency and reduce workloads by automating the creation of ETOPS charts across all applicable flights

Accessible and Reliable

skybook puts operators firmly in control when it comes to ETOPS charts by ensuring that the information can be accessed in a number of formats via a range of platforms making it more accessible than ever.

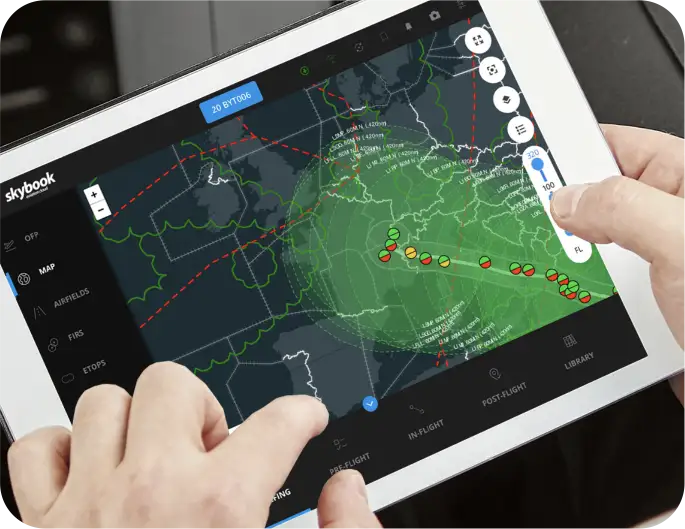

Our ETOPS Charts can viewed via a desktop, downloaded onto a tablet or taken as part of a full skybook EFB briefing package.

Should the need arise, they can even be printed in various sizes (A3, A4, letter size) to suit your specific requirements and hardware.

We know it can be a challenge to print these maps on an A4 printer so we have made sure our maps can be clearly split across multiple pages to show greater detail, improved clarity and above all the ability to easily bring the pages together to see the entire ETOPS chart.

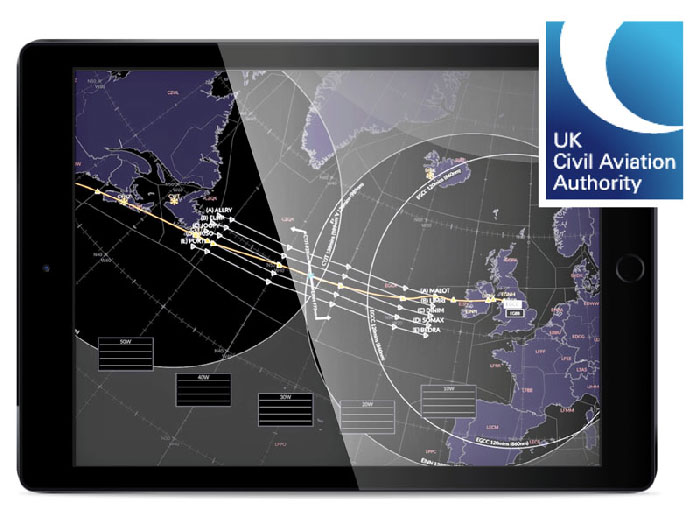

All of our ETOPS charts have been approved by CAA's worldwide and we were the first provider to be approved for the automatic production of ETOPS Charts by the UK CAA and French DAAC.

skybook puts operators firmly in control when it comes to ETOPS charts.

Instantly record journey data as it happens

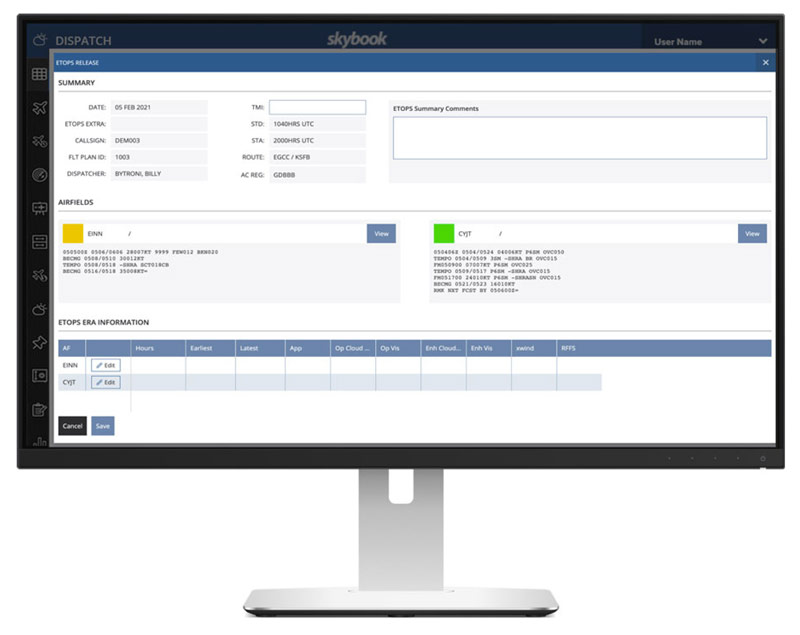

Ensure your aircrews have the information they need and know exactly what to do in the event of an incident during an ETOPS flight with the ETOPS Release Form.

In addition to the comprehensive information delivered through our ETOPS charts, aircrew can also access additional data captured within the skybook ETOPS Release which is an integral part of the Electronic Flight Bag Digital Briefing Pack for ETOPS flights.

Prepared in advance by the Operations/Dispatch team, the ETOPS Release is intuitive and easy to populate, outlining the following information:

This simple addition presents the information that will prove vital for the crew in the event of an incident, putting everything the need in one place for quick and easy access.

  • Flight details (date, time, call sign, aircraft reg)
  • TMI
  • Route
  • Dispatcher ID
  • ETOPS summary comments
  • En-Route Alternate details (includes operating hours, runway detail, approach, Op Minima and Enh Minima, X wind and RFFS)
Instantly record journey data as it happens with the ETOPS Release Form
